In this post, we’ll take a complete look at Shifter Operands used in ARM’s Data Processing Instructions. Shifter operands are not optional—they are fundamental components of all data processing instructions.

We’ll focus on three key aspects:

  1. Types and syntax of shifter operands
  2. How immediate values are encoded and what limitations they have
  3. Why ARM supports shifter operands at all

How Shifter Operands Are Used

Instructions like mov, add, and sub always use at least one shifter operand.
A typical data processing instruction includes:

  • Destination register (Rd)
  • Input register (Rn)
  • Shifter operand (Shifter Operand)

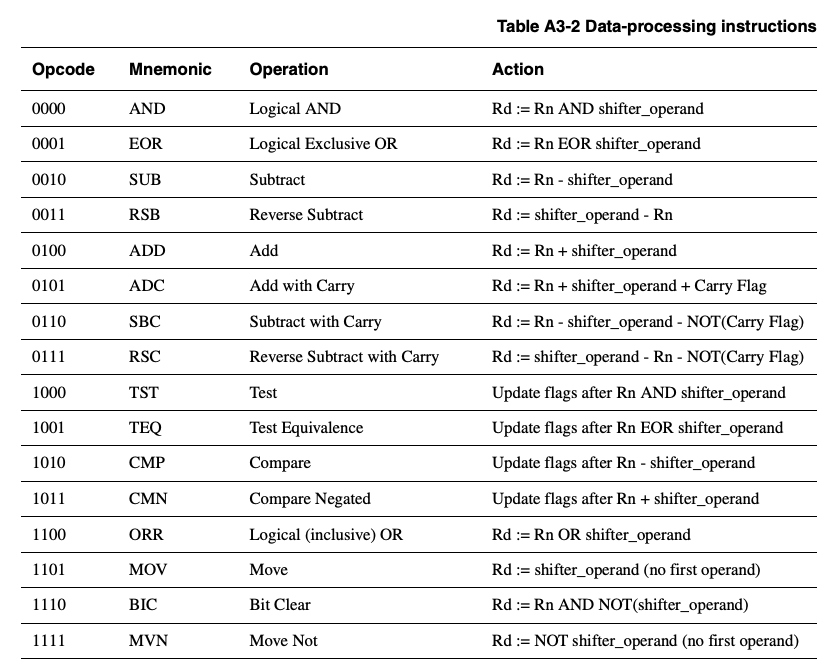

ARM Data Processing Instruction Table
A summary of ARM's Data Processing Instructions. All of them use a shifter_operand and may combine it with Rn to produce a result in Rd, or simply update condition flags.

Instruction Format

  • Unary instructions (mov, mvn):
<instruction> <Rd>, <Shifter Operand>
  • Binary instructions (add, sub, and, etc.):
<instruction> <Rd>, <Rn>, <Shifter Operand>

In other words:

  • mov and mvn store the shifter operand’s value (or its bitwise negation) into Rd
  • Other instructions compute Rn op ShifterOperand, storing the result in Rd

Types of Shifter Operands

Shifter operands can take one of the following forms:

  • Immediate constant
    • #<immediate>
  • Register value
    • <Rm>
  • Shifted register
    • Logical shift left: <Rm>, lsl #<shift_imm> or <Rm>, lsl <Rs>
    • Logical shift right: <Rm>, lsr #<shift_imm> or <Rm>, lsr <Rs>
    • Arithmetic shift right: <Rm>, asr #<shift_imm> or <Rm>, asr <Rs>
    • Rotate: <Rm>, ror #<shift_imm> / <Rm>, ror <Rs> / <Rm>, rrx

Here, <Rm> is the operand register used in the operation.

You can plug these into the <Shifter Operand> position in any data-processing instruction.

Example:

# mov r0, r1
  <instruction> <Rd>, <Shifter Operand>
  <instruction> <Rd>, <Rm>
       mov       r0    r1

# add r0, r1, r0, lsl #2
  <instruction> <Rd>, <Rn>, <Shifter Operand>
  <instruction> <Rd>, <Rn>, <Rm> lsl #<shift_imm>
       add       r0    r1    r0         #2

Valid and Invalid Syntax Examples

mov r0, r1           @ Valid (<Rd> = r0, <Rm> = r1)
mov r0, #0xff        @ Valid (<Rd> = r0, <Shifter Operand> = 0xff)
mov r0, r0, lsl #2   @ Valid (<Rd> = r0, <Sfhiter Operand> = r0, lsl #2)
add r0, #1           @ Invalid (<Rd> = r0, missing <Rn>)

Immediate Value Limitations

When using an immediate (#) as a shifter operand, there’s an important limitation. You can’t represent all 32-bit values—even though ARM is a 32-bit architecture.

Example:

  .text
  .global _start
_start:
  mov r0, #0x101
  b .

This causes an error:

imm.s: Assembler messages:
imm.s:4: Error: invalid constant (101) after fixup

Immediate Value Encoding

Immediate values in shifter operands are encoded in 12 bits total:

  • 8-bit constant (imm8)
  • 4-bit rotation (rotate_imm)

Actual rotation is rotate_imm * 2 bits (even numbers only)

The final value is computed like this:

#<immediate> = #<imm8> ROR (2 * #<rotate_imm>)

That means you can only represent values that can be formed by rotating an 8-bit number.

Constraints:

  • 0x00 <= imm8 <= 0xff
  • 0 <= rotate_imm <= 15
  • Effective rotation = 2 * rotate_imm

Example: Valid Immediate

mov r0, #0x104
  • 0x104 = 0b0000_0000_0000_0000_0000_0001_0000_0100
  • Can’t be stored directly in 8 bits, but:
  • If you rotate it left by 2 (== right by 30), the resulting 8-bit pattern(0100_0001) is valid
  • Therefore, imm8=0x41, rotate_imm=15 → valid encoding

Example: Invalid Immediate

mov r0, #0x101
  • 0x101=0b0000_0000_0000_0000_0000_0001_0000_0001
  • No rotation of 8-bit values can produce this → invalid

What to Do with Unrepresentable Constants?

Use a literal pool.

literal-pool.s

  .text
  .global _start
_start:
  ldr r0, =0x101   @ The assembler places 0x101 nearby and loads it
  b .

Compile:

$ arm-none-eabi-gcc \
    -Ttext=0x10000 \
    -nostdlib \
    literal-pool.s \
    -o literal-pool.elf

Disassembled:

$ arm-none-eabi-objdump -D literal-pool.elf
00010000 <_start>:
   10000:       e51f0000        ldr     r0, [pc, #-0]   @ 10008 <_start+0x8>

We’ll explore literal pools in more detail in a future post.

Example in C: When Constants Can’t Be Encoded

invalid-imm.c

int main(void) {
  int x = 0x101;
  return x;
}

Compile:

$ arm-none-eabi-gcc -fomit-frame-pointer -nostdlib -S invalid-imm.c

Assembly output:

main:
  sub sp, sp, #8
  ldr r3, .L3
  @...
.L3:
  .word 257

The constant is stored in a literal pool and loaded with ldr.

Why Use This Encoding?

If ARM allowed 32-bit immediate constants in every instruction, the instruction size would need to increase to 64 bits. That would violate the compact RISC design of ARM.

Most common constants in real code are:

  • Small values (0, 1, 255)
  • Bitmasks (0xff00, 0x8000)
  • Address offsets

These are often representable via rotate encoding. The result is compact, expressive, and efficient.

Why Do Shifter Operands Exist?

ARM instructions pass the second operand through a Barrel Shifter before going to the ALU.

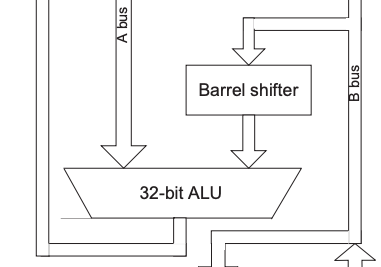

ARM Barrel Shifter Diagram
A partial block diagram of the ARM7TDMI. The second operand is always passed through a Barrel Shifter before entering the ALU. This allows shift and arithmetic/logic operations to happen in a single instruction.

This hardware design allows:

  • Fewer instructions
  • Higher code density
  • Better performance

This concludes our deep dive into shifter operands in ARM assembly. Let me know in the comments if you want a breakdown of shift operation opcodes or internal instruction encoding!
