One of the key components of the CPU is the ALU — the Arithmetic Logic Unit. As the name suggests, it handles both logical and arithmetic operations.

In arithmetic operations, it’s important to consider whether a number is signed or unsigned. In the previous post, we explored logical shifts for bit-level manipulation.
This time, we’ll look at arithmetic right shifts using the asr instruction and how they preserve the sign of a number.

Arithmetic Shift in ARM

ARM provides a single instruction for arithmetic shift:

Instruction Description
asr Arithmetic Shift Right

You can use asr in two ways:

  • asr #<imm>: Shift by an immediate value
  • asr <Rs>: Shift by the value in a register

How Sign Is Preserved

To preserve the sign of a number during an arithmetic shift,
“The shift-in bits are filled with the value of the original sign bit.”

That means:

  • If the most significant bit (MSB) is 0, the shifted-in bits become 0
  • If the MSB is 1, the shifted-in bits become 1

Case: MSB is 0

Before (32-bit):
0 1 0 1 1 1 0 0 ...

ASR #3 →

After (32-bit):
0 0 0 0 1 0 1 1 ...
^ ^ ^
| | |
+---- Sign-preserving fill: 0

Case: MSB is 1

Before (32-bit):
1 0 1 0 0 0 1 1 ...

ASR #3 →

After (32-bit):
1 1 1 1 0 1 0 ...
^ ^ ^
| | |
+---- Sign-preserving fill: 1

ASR Instruction Example

asr.s

  .text
  .global _start
_start:
  mov r0, #-32         @ -32 = 0xffffffe0
  mov r1, r0, asr #1   @ R1 = 0xfffffff0 = -16
  b .

-32 is represented as 0xffffffe0 in hexadecimal.

After a 1-bit arithmetic shift right:

0xffffffe0 >> 1 = 0xfffffff0 (-16)

This is equivalent to dividing by 2, while preserving the sign:
-32 / 2 = -16

Why Only Right Arithmetic Shift?

There is no left arithmetic shift because left shifting changes the MSB, and that may be intentional.
In other words, it doesn’t make sense to “preserve the sign” when you’re introducing new bits into the sign position.

left-shift-for-negative.s

  .text
  .global _start
_start:
  mov r0, #0x40000000
  movs r1, r0, lsl #1
  b .

Shifting 0x40000000 left by 1 gives 0x80000000. Here’s the breakdown:

Binary Hex Decimal
0b0100… 0x40000000 1073741824
0b1000… 0x80000000 2147483648 or -2147483648

This result can be interpreted as either positive or negative, depending on whether you’re treating it as a signed or unsigned integer.

To help the programmer decide, the ARM CPU sets the N (Negative) flag in the CPSR register when the result has MSB = 1.
This lets you check the CPSR and decide how to interpret the result.

Later, we’ll also explore the V (Overflow) flag used in arithmetic operations like add and sub. But for now, since we used lsl, only the Negative flag is relevant. We’ll discuss flags in more detail in upcoming posts on arithmetic instructions.

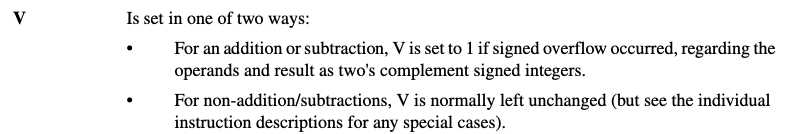

ARM manual: overflow flag not updated on logical shift
The ARM manual states that overflow flags are generally not updated for non-add/sub operations like logical shifts.

In short: left shifts in ARM are always logical (lsl).
There’s no such thing as an “arithmetic left shift” because it doesn’t make sense to preserve the sign when the sign bit itself is being shifted.

Checking Flags in GDB

Let’s compile and run the left-shift-for-negative.s example and check the CPSR flags in GDB.

1. Compile

$ arm-none-eabi-gcc \
    -Ttext=0x10000 \
    -nostdlib \
    left-shift-for-negative.s \
    -o left-shift-for-negative.elf

2. Ruin in QEMU

$ qemu-system-arm \
    -machine versatilepb \
    -nographic \
    -S \
    -s \
    -kernel left-shift-for-negative.elf

3. Connect GDB

$ gdb-multiarch left-shift-for-negative.elf

(gdb) target remote :1234
0x00010000 in _start ()
(gdb) si                   # mov r0, #0x40000000
0x00010004 in _start ()
(gdb) p ($cpsr >> 31) & 1
$2 = 0
(gdb) si                   # movs r1, r0, lsl #1
0x00010008 in _start ()
(gdb) p ($cpsr >> 31) & 1
$2 = 1

The second instruction(movs r1, r0, lsl #1) set the N (Negative) flag because the result of the shift was interpreted as a negative number.

Summary

In this post, we learned:

  • How to use the asr instruction for arithmetic right shifts
  • Why there is no asl (arithmetic left shift)
  • How to check the Negative flag using GDB

In the next chapter, we’ll explore the final type of shift: rotate right (ror) and rotate with extend (rrx), which are used to rotate bits circularly.
